JIS Female 60 Degree Cone (Komatsu)

Printer Friendly Page
Skip to Description
Skip to Prices

Description

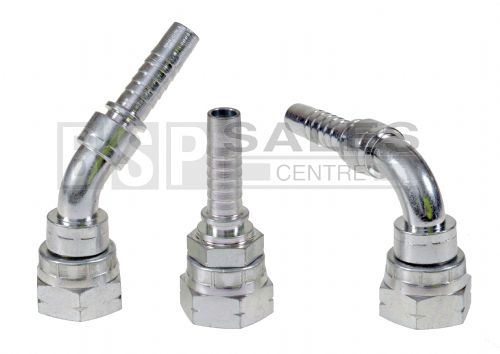

Standard insert with Komatsu JIS Female thread with 60 degree cone to suit hydraulic hoses.

The hose size shown is the inside diameter in 1/16".

Manufacturers ref:
0940 - JIS Female Straight
1040S - JIS Female 45 degree
0990S - JIS Female 90 degree

Technical Details

Datasheets

JIS Female 60 Degree Cone (Komatsu) datasheet

Click Here

Prices (Click quantity for more availability info)

	Thread (JIS)	Hose size (1/16”)	Order Code	Available	Each
JIS Female Straight
	M14 x 1.5	-04	132736	9	£5.02
	M16 x 1.5	-05	132737	15	£9.32
	M14 x 1.5	-06	132738	0	£8.00
	M18 x 1.5	-06	132739	2	£7.43
	M22 x 1.5	-08	132740	0	£9.55
	M24 x 1.5	-10	132741	0	£14.48
	M30 x 1.5	-12	132742	0	£21.32
	M33 x 1.5	-16	132743	0	£31.07
	M36 x 1.5	-20	132744	0	£39.15
	M42 x 1.5	-24	132745	0	£88.48
JIS Female 45 Degree
	M18 x 1.5	-06	132754	2	£17.25
JIS Female 90 Degree
	M14 x 1.5	-04	132746	1	£16.22
	M16 x 1.5	-05	132747	0	£18.38
	M14 x 1.5	-06	132748	0	£16.83
	M18 x 1.5	-06	132749	2	£19.72
	M24 x 1.5	-10	132751	0	£40.67
	M22 x 1.5	-08	132750	0	£26.72
	M30 x 1.5	-12	132752	0	£61.72
	M33 x 1.5	-16	132753	0	£84.52

(All Prices Exclude VAT)
