JIC Female swivel 74 Degree Cone

Printer Friendly Page
Skip to Description
Skip to Prices

Description

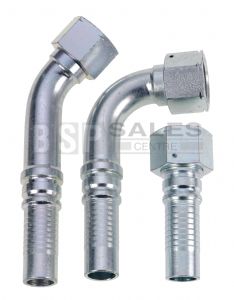

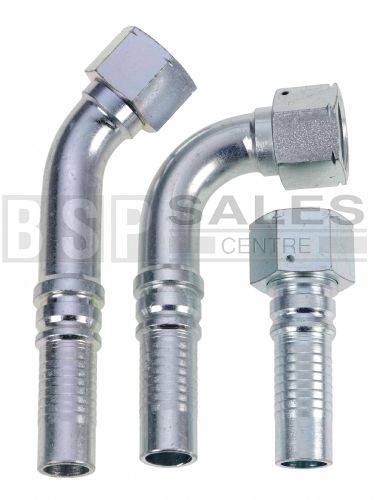

Insert (Interlock) with JIC Female thread with 74 degree cone to suit 4SH and other types of hose.

The hose size shown is the inside diameter in 1/16".

Manufacturers ref:
0900H - JIC Female swivel straight
0950H - JIC Female swivel 90 degree
1000H - JIC Female swivel 45 degree

Prices (Click quantity for more availability info)

	Thread	Hose size (1/16”)	Order Code	Available	Each
JIC Female swivel straight
	1.1/16"	-12	123619	0	£22.77
	1.5/16"	-16	123620	4	£22.18
	1.5/8"	-20	123621	1	£36.52
	1.7/8"	-24	123622	0	£79.67
	2.1/2"	-32	123623	0	£124.13
JIC Female swivel 45 degree
	1.1/16"	-12	123629	0	£42.58
	1.5/16"	-16	123630	1	£54.77
	1.5/8"	-20	123631	0	£120.42
	1.7/8"	-24	123632	0	£226.02
	2.1/2"	-32	123633	0	£550.78
JIC Female swivel 90 degree
	1.1/16"	-12	123624	0	£45.68
	1.5/16"	-16	123625	1	£54.77
	1.5/8"	-20	123626	0	£120.42
	1.7/8"	-24	123627	0	£187.27
	2.1/2"	-32	123628	0	£160.05

(All Prices Exclude VAT)
