Flat Face Couplings ISO 16028 A Series

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

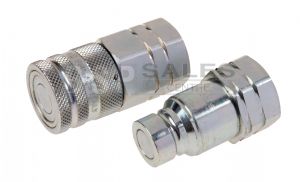

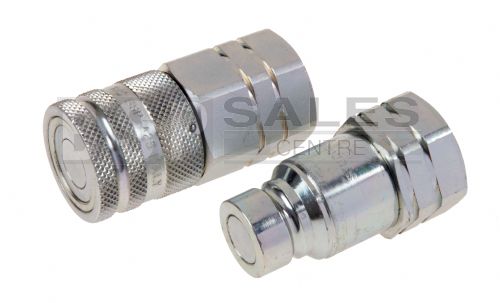

Stucchi A series flat face quick release couplings in accordance with ISO 16028, NFPA T3.20.15 HTMA (size 3/8")

Flat face couplings are easy to clean and reduce the risk of contamination inside the hydraulic circuit.

To connect push the male half towards the female half or vice versa.

After connection turn the external sleeve to engage the safety lock function to prevent accidental disconnection.

The carrier and probe halves listed here all have BSP Female parallel threads. Other thread types are available on request.

The A series is fitted with NBR seals as standard.

On request:

Viton Seals.
NPT, SAE, ORFS, Metric or JIC threads
Zinc Nickel plating for high corrosion resistance
Special configuration with 90 degree fitting
Panel mounting version

At BSP Sales Centre we specialise in hydraulic quick release couplings for a wide range of applications. Whatever your requirements please contact us - a member of our team will be happy to help.

Technical Details

Seals:	NBR
Temperature:	-20 to +100 deg C

Datasheets

Flat Face Couplings ISO 16028 A Series datasheet

Click Here

Prices (Click quantity for more availability info)

	Thread	ISO SIze	Pressure	Mfr Ref	Order Code	Available	Each
Flat Face - Carrier
	G1/8"	-	420 bar	A4	148231	0	£60.18
	G1/4"	6.3mm	420 bar	A7	148232	0	£60.37
	G3/8"	10.0mm	350 bar	A9	148233	0	£36.65
	G1/2"	10.0mm	350 bar	A9	148234	0	£37.48
	G1/2"	12.5mm	330 bar	A13	148235	0	£43.98
	G3/4"	12.5mm	330 bar	A13	148236	0	£46.72
	G3/4"	16.0mm	330 bar	A15	148237	0	£86.88
	G1"	16.0mm	330 bar	A15	148238	0	£102.40
	G3/4"	19.0mm	330 bar	A17	148239	0	£149.12
	G1"	19.0mm	330 bar	A17	148240	0	£149.20
	G3/4"	25.0mm	300 bar	A21	148241	0	£181.12
	G1"	25.0mm	300 bar	A21	148242	0	£181.12
	G1-1/4"	25.0mm	300 bar	A21	148243	0	£186.53
	G1-1/2"	25.0mm	300 bar	A21	148244	0	£223.78
	G1"	31.5mm	300 bar	A25	148245	0	£388.32
	G1-1/4"	31.5mm	300 bar	A25	148246	0	£388.32
	G1-1/4"	38.0mm	270 bar	A30	148247	0	£513.37
	G1-1/2"	38.0mm	270 bar	A30	148248	0	£511.52
	G2"	38.0mm	270 bar	A30	148249	0	£613.62
Flat Face - Probe
	G1/8"	-	420 bar	A4	148250	0	£29.98
	G1/4"	6.3mm	420 bar	A7	148251	0	£37.45
	G3/8"	10.0mm	350 bar	A9	148252	3	£12.83
	G1/2"	10.0mm	350 bar	A9	148253	11	£15.38
	G1/2"	12.5mm	330 bar	A13	148254	0	£27.38
	G3/4"	12.5mm	330 bar	A13	148255	0	£29.52
	G3/4"	16.0mm	330 bar	A15	148256	0	£41.63
	G1"	16.0mm	330 bar	A15	148257	0	£45.77
	G3/4"	19.0mm	330 bar	A17	148258	0	£71.92
	G3/4"	25.0mm	300 bar	A21	148260	0	£98.43
	G1"	25.0mm	300 bar	A21	148261	0	£96.33
	G1-1/4"	25.0mm	300 bar	A21	148262	0	£98.43
	G1-1/2"	25.0mm	300 bar	A21	148263	0	£118.12
	G1"	31.5mm	300 bar	A25	148264	0	£175.33
	G1-1/4"	31.5mm	300 bar	A25	148265	0	£175.33
	G1-1/4"	38.0mm	270 bar	A30	148266	0	£275.18
	G1-1/2"	38.0mm	270 bar	A30	148267	0	£271.18
	G2"	38.0mm	270 bar	A30	148268	0	£328.27

(All Prices Exclude VAT)
