Toggle Lever valve 2 positions 1/8" BSP 3/2 & 5/2

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

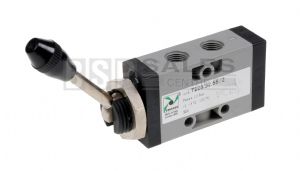

Toggle lever, 2 position hand operated valve with technopolymer body.

1/8" BSP and available in 3/2 and 5/2 version with red, black or green lever.

Technical Details

Max pressure:	10 bar
Temperature:	-5 to +50 deg C
Flow rate:	620 Nl/min (@ 6 bar with 1 bar pressure drop)
Orifice size:	6mm

Datasheets

Toggle Lever valve 2 positions 1/8 BSP 3/2 & 5/2 datasheet

Click Here

Prices (Click quantity for more availability info)

Type	Colour	Order Code	Available	Each
3/2	Red	121377	0	£36.86
3/2	Black	121378	2	£36.86
3/2	Green	121379	0	£36.86
5/2	Red	121415	0	£40.51
5/2	Black	121416	2	£40.51
5/2	Green	121417	0	£40.51

(All Prices Exclude VAT)
