Description

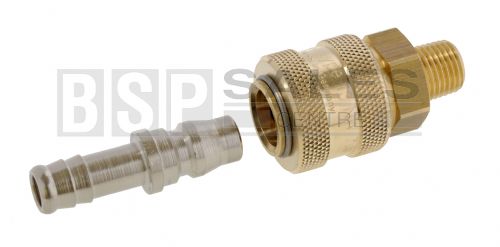

Rectus Series 13 quick release couplings and plugs with Japanese industrial profile designed for compressed air.

This coupling has single handed operation and above average flow volumes. The coupling is made from brass and the plug from nickel plated steel.

The couplings and plugs can be ordered with BSP Male & Female threads 1/4" up to 1/2" and hose tails 6mm up to 13mm

In the table below R = BSP Taper threads and G = BSP Parallel thread.

At BSP Sales Centre we specialise in Rectus and other types of quick release coupling. Whatever your requirements please contact us and a member of our team will be happy to assist.

Technical Details

Pressure:	up to 35 bar
Materials:	Brass (Coupling)
	Nickel plated steel (Plug)
	NBR (Seals)
Temperature:	-20 to +100 deg C
Flow rate:	1,150 l/min (air)
	16 l/min (water - pressure drop 0.5 bar)

Interchangeability:	PCL KF
	Cejn 310/310 esafe
	Cejn 315/315 esafe
	Nitto Kohki 200
	Daisen 20/23SF/23SOF

Datasheets

Click Here

Prices (Click quantity for more availability info)

	Type	Size	Order Code	Available	Each
Series 13 Couplings
	Female Thread	G1/4"	142734	6	£10.26
	Female Thread	G3/8"	142735	6	£9.88
	Female Thread	G1/2"	142736	3	£10.52
	Male Thread	R1/4"	142731	0	£10.37
	Male Thread	R3/8"	142732	2	£10.77
	Male Thread	R1/2"	142733	4	£10.83
	Hose Tail	6mm	142737	6	£10.35
	Hose Tail	8mm	142738	5	£10.35
	Hose Tail	10mm	142739	5	£10.32
	Hose Tail	13mm	142740	7	£10.32
Series 13 Plugs
	Female Thread	G1/4"	142744	8	£3.65
	Female Thread	G3/8"	142745	9	£7.05
	Female Thread	G1/2"	142746	0	£7.28
	Male Thread	R1/4"	142741	12	£3.49
	Male Thread	R3/8"	142742	5	£5.42
	Male Thread	R1/2"	142743	5	£7.51
	Hose Tail	6mm	142747	0	£2.92
	Hose Tail	8mm	142748	16	£3.05
	Hose Tail	10mm	142749	5	£3.03
	Hose Tail	13mm	142750	0	£3.97

(All Prices Exclude VAT)
