Plug Brass Internal Hex 1/8" - 2" BSPT & NPT

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

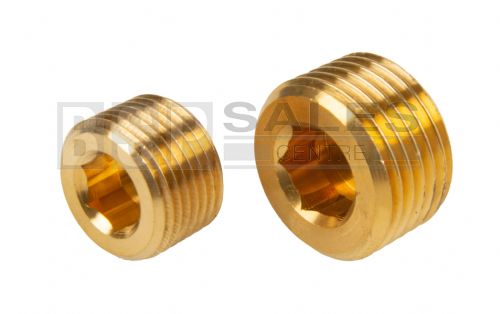

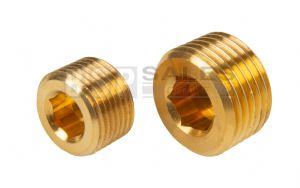

Brass internal hex male blanking plug available with tapered BSP and NPT threads.

Technical Details

Manufacturers Ref:	0205
Material	Brass
Temperature Range:	-40 to +150 Deg C

Working Pressure:
1/8"	200 bar
1/4"	200 bar
3/8"	200 bar
1/2"	200 bar
3/4"	150 bar
1"	150 bar
1 1/4"	100 bar
1 1/2"	100 bar
2"	100 bar

Datasheets

Plug Brass Internal Hex 1/8 - 2 BSPT & NPT datasheet

Click Here

Prices (Click quantity for more availability info)

	Thread	Legris Ref	Order Code	Available	Each
BSP Taper Threads
	R1/8"	0205 10 00	145581	57	£0.85
	R1/4"	0205 13 00	145582	56	£1.25
	R3/8"	0205 17 00	145583	50	£2.28
	R1/2"	0205 21 00	145584	28	£3.72
	R3/4"	0205 27 00	145585	6	£8.37
	R1"	0205 34 00	145586	9	£13.93
	R1 1/4"	0205 42 00	145587	5	£25.35
	R1 1/2"	0205 49 00	145588	2	£37.48
	R2"	0205 48 00	145589	2	£33.07
NPT Threads
	1/8"	0205 11 00	145590	99	£1.78
	1/4"	0205 14 00	145591	45	£3.63
	3/8"	0205 18 00	145592	9	£5.92
	1/2"	0205 22 00	145593	7	£5.98
	3/4"	0205 28 00	145594	9	£9.58
	1"	0205 35 00	145595	5	£20.52

(All Prices Exclude VAT)
